Yamaha DXS 10

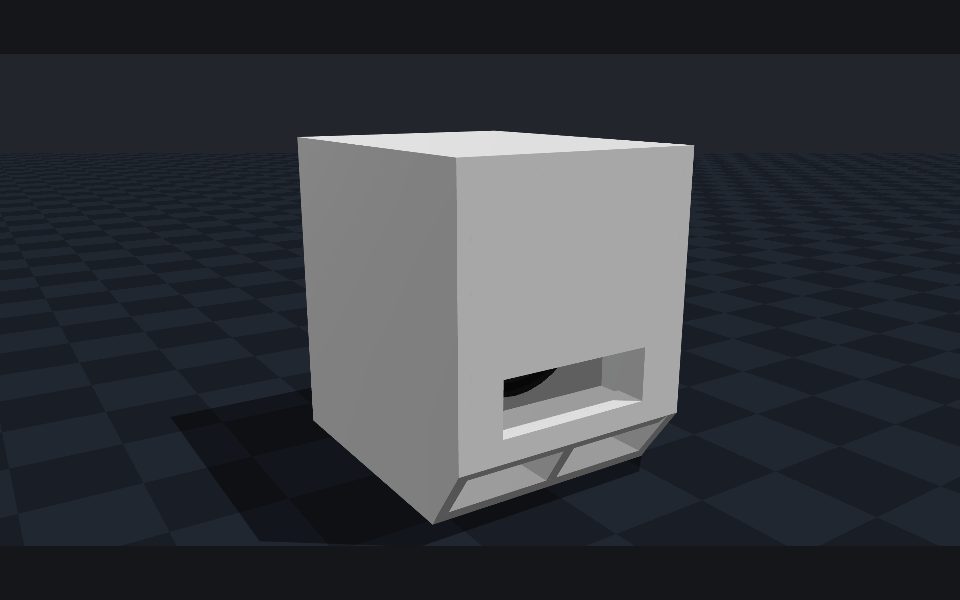

A 6th-order bandpass enclosure for a 10" Subwoofer, published by Glenn Mejias.
Specifications
| Driver | 10" Subwoofer |
|---|---|
| Drivers | 1 |
| Enclosure | 6th-order bandpass |
| Net volume | 52.6 L |
| Tuning (rear) | 59.0 Hz |
| Tuning (front) | 152.0 Hz |
| F3 | 54.7 Hz |
| Peak SPL | 104.6 dB |
| External size | 37.8 × 48.4 × 48.2 cm |
Open this design in the calculator
Spin the cabinet, read the curves, and change anything you like — it becomes your own project.
