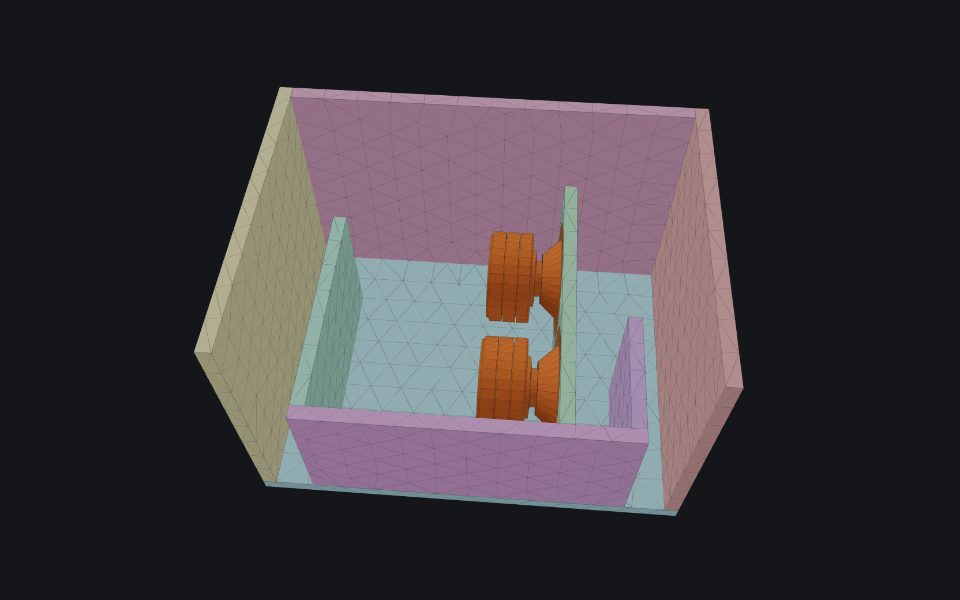

6th order bandpass thai concept
A 6th-order bandpass enclosure for a 6.5" Subwoofer, published by Glenn Mejias.
About this build
dual hk 6.5 inch subwoofer
Specifications
| Driver | 6.5" Subwoofer |
|---|---|
| Drivers | 2 |
| Enclosure | 6th-order bandpass |
| Net volume | 27.0 L |
| Tuning (rear) | 60.0 Hz |
| Tuning (front) | 110.0 Hz |
| F3 | 56.3 Hz |
| Peak SPL | 119.2 dB |
| External size | 55.2 × 23.7 × 40.8 cm |
